Vertical vs Horizontal Packed Bed Scrubbers: Which to Choose?

With increasing pollution levels across the globe, there is a growing need for effective pollution control. Packed bed scrubbers are commonly used for removing harmful gases, odors, and particulates across industries like chemical manufacturing, metal plating, and wastewater treatment. These scrubbers are available in two main types: vertical packed bed scrubbers and horizontal packed bed scrubbers, each with distinct advantages and limitations.

In this blog, we’ll explore the differences between these two configurations of packed bed scrubbers, their functionalities, and how to choose the right scrubber for your facility. Read on to get a better understanding of this efficient pollution control device.

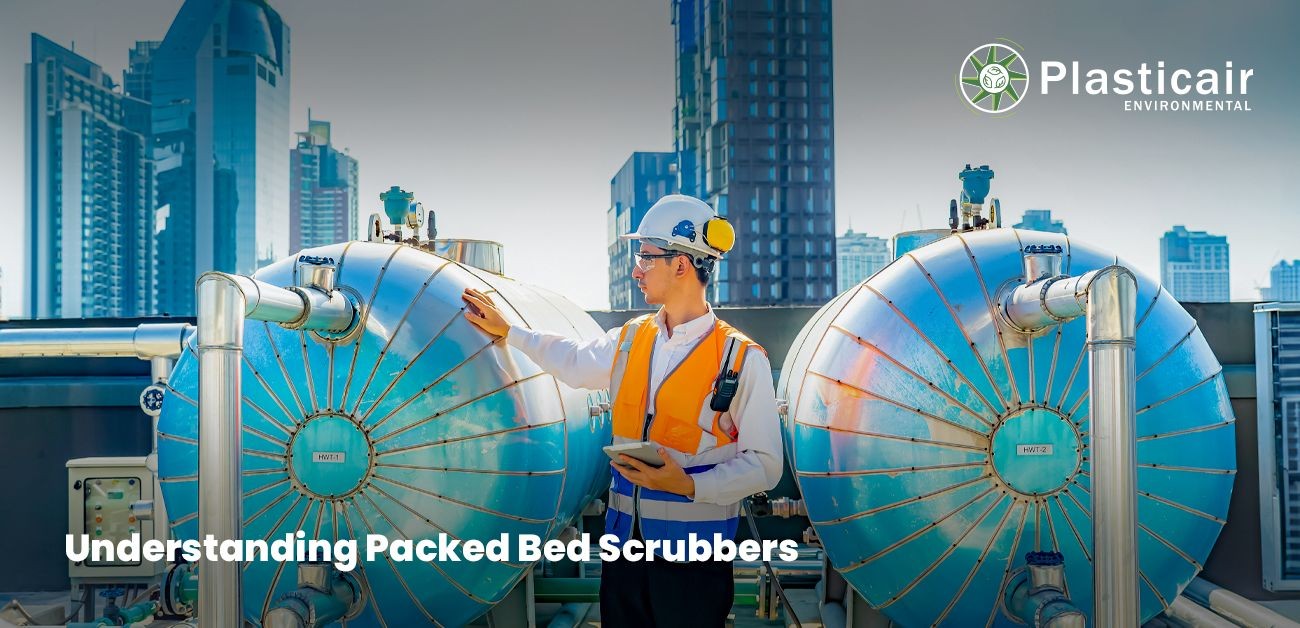

Understanding Packed Bed Scrubbers

Packed bed scrubbers are very similar to wet scrubbers and operate by passing contaminated air through a packed bed section where it comes into contact with a scrubbing liquid. This liquid absorbs or neutralizes harmful pollutants like SO2, H2S, and chlorine gas. They are effective for removing acidic gases, odors, and particulates. Moreover, these systems often integrate components like mist eliminators, venturi scrubbers, and FRP fans for enhanced efficiency and durability.

The configuration of the scrubber—whether vertical or horizontal—impacts its performance, installation, and suitability for specific applications. The following information will help you understand which scrubber would be best suited for your industry.

Vertical Packed Bed Scrubbers

Design and Functionality

• Vertical scrubbers have a tall, cylindrical design where gas flows upward while the scrubbing liquid flows downward.
• The counter-flow arrangement maximizes the gas-liquid contact, improving pollutant removal efficiency.
• Often used in chrome scrubbers, acid scrubbers, and SO2 scrubbers, the packed bed scrubber technology is ideal for handling high gas flow rates.

Advantages of Using Vertical Packed Bed Scrubbers

1. High Efficiency: The counter-current flow increases the contact time, ensuring better pollutant absorption and cleaner air.
2. Space-Saving: Their vertical design requires less floor space, making them suitable for facilities with space constraints.
3. Scalability: Vertical scrubbers can handle high volumes of gas with minimal design modifications.
4. Ease of Maintenance: Access points in vertical scrubbers simplify inspection and maintenance of internal components like FRP Ducts and packing materials.

Limitations of Using Vertical Packed Bed Scrubbers

• Height Requirements: Their tall structure may not be feasible for facilities with height restrictions.
• Installation Challenges: Erecting vertical scrubbers can be complex, especially in retrofitted systems.

Horizontal Packed Bed Scrubbers

Design and Functionality

• These scrubbers are rectangular or cylindrical in design. Gas flows through the packed bed section horizontally.
• The scrubbing liquid is added to the scrubber from the top or from the side.
• Commonly used in odor scrubbers, H2S scrubbers, and applications with low to moderate gas flow rates.

Advantages of Using Horizontal Packed Bed Scrubbers

1. Adept at Countering Height-related Restrictions: These scrubbers are ideal for facilities with height restrictions.
2. Simpler Installation: Horizontal scrubbers are easier to install, especially in retrofits or confined spaces.
3. Versatile Design: They can be customized to fit into existing infrastructure without significant modifications.
4. Even Flow Distribution: Horizontal scrubbers often have better gas flow distribution, reducing pressure drops.

Limitations of Using Horizontal Packed Bed Scrubbers

• Space Issues: They occupy more space in the facility in comparison to vertical scrubbers.
• Lower Efficiency: Horizontal designs may have reduced gas-liquid contact time, affecting pollutant removal rates in some applications.
• Maintenance Accessibility: Internal components can be harder to access compared to vertical scrubbers.

Factors to Consider When Choosing

1. Space Availability in Your Facility

   • If you have height restrictions but ample floor space, a horizontal scrubber may be the better choice.
   • Vertical scrubbers are ideal for facilities with limited floor space but sufficient height clearance.

2. Pollutant Type and Concentration

   • Vertical scrubbers are more effective for high concentrations of pollutants like chromic acid or sulfur dioxide, commonly addressed by chrome scrubbers or SO2 scrubbers.
   • Horizontal scrubbers work well for moderate pollutant loads, like in odor scrubbers and H2S scrubbers.

3. Operational Efficiency

   • Vertical scrubbers with mist eliminators and venturi scrubbers may be preferable for applications demanding high pollutant removal efficiency.
   • Horizontal scrubbers are suitable for moderate efficiency requirements and cost-sensitive projects.

4. Installation and Maintenance

   • Vertical scrubbers may involve more complex installations but offer easier maintenance access.

   • Horizontal scrubbers are easier to retrofit but may require additional effort for the maintenance of internal components.

5. Regulatory Compliance

   • Both configurations can meet environmental standards when properly designed and maintained. The choice depends on the specific pollutants being dealt with and the efficiency required.

Applications of Vertical and Horizontal Scrubbers

Vertical Scrubbers

• Chrome Scrubbers for capturing chromic acid fumes in plating operations.
• Acid Scrubbers in chemical manufacturing.
• SO2 Scrubbers in metal-processing units and power plants.

Horizontal Scrubbers

• Odor Scrubbers for wastewater treatment facilities.
• H2S Scrubbers in petrochemical plants.
• Chlorine Scrubbers for emergency gas scrubbing in storage facilities.

Vertical Scrubbers

Vertical packed bed scrubbers are ideal for industries that require high efficiency, compact floor space, and a counter-current flow design. Here’s a closer look at their applications:

1. Chrome Scrubbers

These systems capture and neutralize chromic acid fumes, a byproduct of plating operations that pose severe health and environmental risks. They are used in metal plating and finishing industries, especially where compliance with stringent air quality regulations is necessary.

2. Acid Scrubbers

These scrubbers handle acidic gases like hydrochloric acid, nitric acid, or sulfuric acid, commonly emitted during chemical manufacturing processes.

3. SO2 Scrubbers

This type of scrubber removes sulfur dioxide, a major contributor to acid rain, emitted during fuel combustion in power plants or metal processing operations.

Horizontal Scrubbers

Horizontal packed bed scrubbers are particularly useful in retrofitting or low-height facilities.

1. Odor Scrubbers

These scrubbers mitigate unpleasant odors caused by organic decomposition or volatile chemicals. They are effective in wastewater treatment plants, composting facilities, and food processing units.

2. H2S Scrubbers

H2S Scrubbers are effective in removing hydrogen sulfide gas released in the petroleum industry and natural gas processing units.

3. Chlorine Scrubbers

These scrubbers effectively neutralize chlorine gas released during storage or accidental leaks, ensuring safe workplace environments. Chemical storage facilities, water treatment plants, and swimming pool maintenance units are some of the facilities where these scrubbers are used.

At Plasticair Environmental, we specialize in delivering customizable scrubbers, including both vertical packed bed scrubbers and horizontal packed bed scrubbers configurations. Our systems are engineered with durable materials like Fiberglass Ducts and integrated with advanced components like mist eliminators and FRPs to ensure optimal performance and longevity.

Whether you need a high-efficiency vertical scrubber for industrial gas treatment or a compact horizontal scrubber for odor control, our solutions are tailored to meet your specific needs. We also offer comprehensive services, from design and installation to maintenance, ensuring your facility remains compliant and efficient.

With the right scrubber in place, industries can achieve better air quality, compliance with environmental regulations, and long-term operational efficiency.
